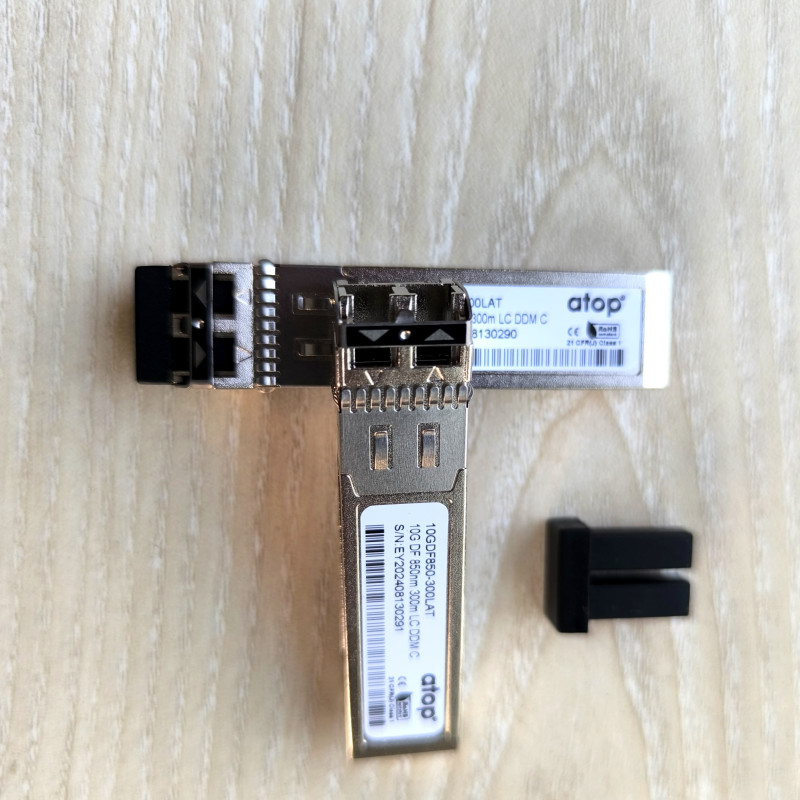

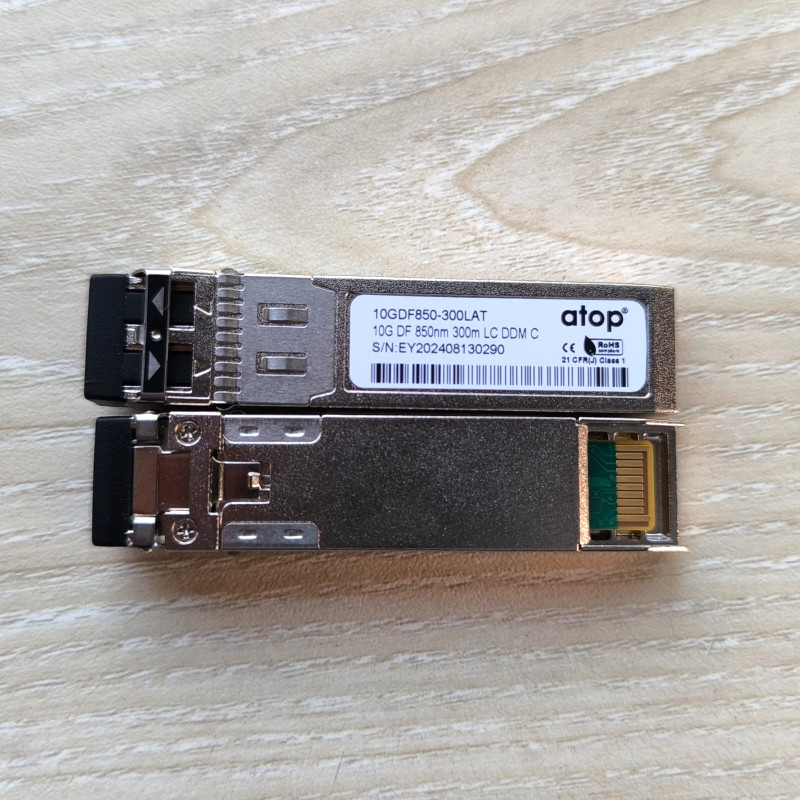

10G SFP DF 850nm D 300m LC

10Gbps SFP+ Optical Transceiver 300mLC DDM Features： • Support 10GBASE-LR/10GBASE-LW/10G Fiber Channel application Compliant to SFP+ Electrical MSA SFF-8431 • Compliant to SFP+ Mechanical MSA SFF-8432 Multi rate of up to 11.3Gbps • Transmission distance up to 300m (OM3 MMF) • +3.3V single power supply Low power consumption • Operating case temp: 0~+70°C RoHS 6/6 compliant Absolute Maximum Ratings: • Table 1- Absolute Maximum Ratings Parameter Symbol Min. Typical Max. Unit Notes Supply Voltage Vcc3 -0.5 - +3.6 V Storage Temperature Ts 0 - 70 °C Operating Humidity RH +5 - +95 % Recommended Operating Conditions: • Table 2- Recommended operating Conditions Parameter Symbol Min Typical Max Unit Notes Operating Case Temperature TC 0 - +7 °C Power Supply Voltage Vcc 3 3.3 3.4 V Power Supply Current Icc - - 30 mA Power Dissipation Pd - - 1.0 W Bit Rate BR - 10.31 - Gbp Electrical Characteristics: • Table 3- Electrical Characteristics Parameter Symbol Min. Typ. Max. Units Notes Transmitter Differential Data Input Swing Vin,P-P 100 - 1000 mV Input Differential Impedance ZIN 80 100 120 Ω Tx_Fault Normal Operation 0 - +0.4 V V Transmitter Fault 2.0 - VCC V V Tx_Disable Normal Operation 0 - +0.8 V V Laser Disable 1.7 - VCC+0 V V Receiver Differential Date Output Vout 300 - 1000 mV Output Differential Impedanc ZD 80 100 120 Ω Output Rise Time (20-80%) TR 24 - - ps Output Fall Time (20-80%) TF 24 - - ps Rx_LOS Normal Operation VOL 0 - +0.4 V Lose Signal VoH 2.0 - VCC V Rx_LOS Transmitter Performance： • Table 4- optical TX Characteristics Parameter Symbo Unit Min Typ Max Notes Optical transmitter Characteristics Bit Rate BR Gbps 9.95 10.31 11.3 Center Wavelength Range λc nm 840 850 860 Average Launch power Tx off Poff dBm - - -45 Launch Optical Power P0 dBm -7.0 - 0 1 Extinction Ratio ER dB 3.0 - - Jitter P-P JP ps - - 30 Jitter RMS JR ps - - 5 Optical Rise/Falltim Tr/tf ps - - 60 Eye Diagram Compliant With IEEE 802.3-2005 Optical receiver Characteristics Bit Rate BR Gbps 9.95 10.31 11.3 Receiver Sensitivity RS dBm - - -10.3 2 Overload Input Optical Power PIN dBm 0 - - 2 Center Wavelength Range λc nm 840 850 860 LOS LOSD dBm - - -11.5 LOSA -24.5 - - LOS Hysteresis dB 0.5 - - Note: • Coupled into MMF. • Measured with PRBS 231-1 test pattern @10.3125Gbps.BER=10E-12 Recommended Interface Circuit: Recommended Host Board Power Supply Circuit: Pin arrangement: Table 5-Pin Function Definitions: Pin Symbol Name/Description Note 1 VEET Module Transmitter Ground 1 2 TX_FAULT Module Transmitter Fault 2 3 TX_DISABLE Transmitter Disable; Turns off transmitter laser output 3 4 SDA 2-Wire Serial Interface Data Line (MOD-DEF2) 5 SCL 2-Wire Serial Interface Clock (MOD-DEF1) 6 MOD_ABS Module Absent, connected to VEET or VEER in the 2 7 RS0 module Rate Select 0, optionally controls SFP+ module receiver as the following when HIGH input Bit Rate>4.25 Gbps 8 RX_LOS andwhenLOWinputBitRate≤4.25Gbps. ReceiverLoss of Signal Indication (in FC designated as RX_LOS, in SONET designated as LOS, 2 9 RS1 andin Ethernet designated as NOT Signal Detect) Rate Select 1, optionallycontrolsSFP+module transmitter as the following when HIGH input Bit Rate>4.25 Gbps and when LOW input Bit Rate ≤4.25 Gbps. 10 VEER Module Receiver Ground 1 11 VEER Module Receiver Ground 1 12 RD- Receiver Inverted Data Output 13 RD+ Receiver Non-Inverted Data Output 14 VEER Module Receiver Ground 1 15 VCCR Module Receiver 3.3 V Supply 16 VCCT Module Transmitter 3.3 V Supply 17 VEET Module Transmitter Ground 1 18 TD+ Transmitter Non-Inverted Data Input 19 TD- Transmitter Inverted Data Input 20 VEET Module Transmitter Ground 1 Note: 1. The module ground pins are isolated from the module case. 2. The pins shall be pulled up with 4.7K-10Kohms to a voltage between 3.14V and 3.46V on host board. 3. The pin is pulled up to VCCT with a 4.7K-10KΩ resistor in the module. Digital Diagnostic Memory Map: Mechanical Diagram: Order Information: Part Number Product Description 10GDF850-300LAT 10G SFP DF 850nm 300 mtr LC
